2. X axis

x_end_motor

x_end_idler

x_end_idler_tensioner

Insert an M3x18mm socket head screw in one of the x_end_idler clamp holes. This screw helps insert the hex nut.

Using tweezers, hold an M3 hex nut so that it can be threaded onto the M3x18mm socket head screw. Tighten that screw until the M3 hex nut is firmly seated.

Remove the M3x18 socket head screw and repeat on the other clamp hole.

Insert an LM8UU linear bearing into the x_end_idler until it hits the internal stop.

The next LM8UU linear bearing will have to be inserted so that the rows of ball bearings are at 45° to the rows in the other bearing.

Insert that LM8UU linear bearing into the x_end_idler until it hits the internal stop.

Verify that the rows of balls are rotated at an angle of 45° from each other (as shown in the photograph).

Temporarily insert a 8mm smooth rod through both LM8UU linear bearings.

Engage two M3x10 socket head screws in the hex nuts, but do not tighten them at this time.

Alternatively tighten the two M3x10 clamp screws to secure the linear bearings. Slide the smooth rods back and forth while tightening.

Don't over-tighten the clamp screws; they need to be just tight enough to keep the bearings from moving.

Remove the 8mm smooth rod.

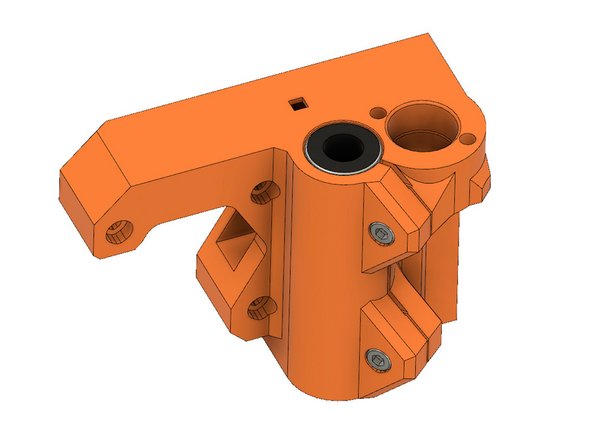

Repeat the 3 previous steps on x_end_motor

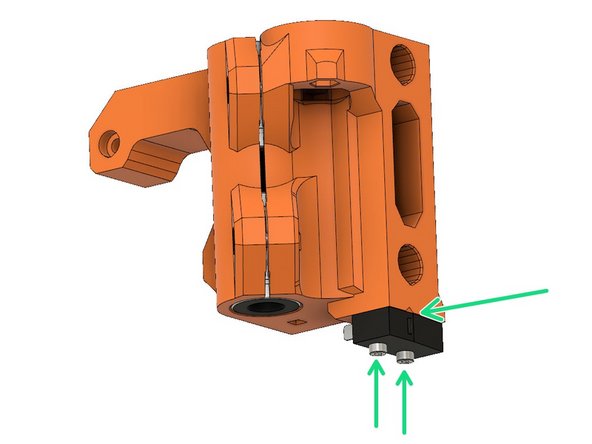

MK2.5S only: Use two M2x12 screws to attach the x-endstop switch. Ensure the correct orientation of the switch. The microswitch should be oriented so that it is closest to the v-notch in the printed part.

MK2.5S only: While tightening the screws, apply gentle pressure in the direction shown.

MK2.5S only: Do not to over-tighten the M2x12 screws!

MK2.5S only: Double check the orientation of the endstop.

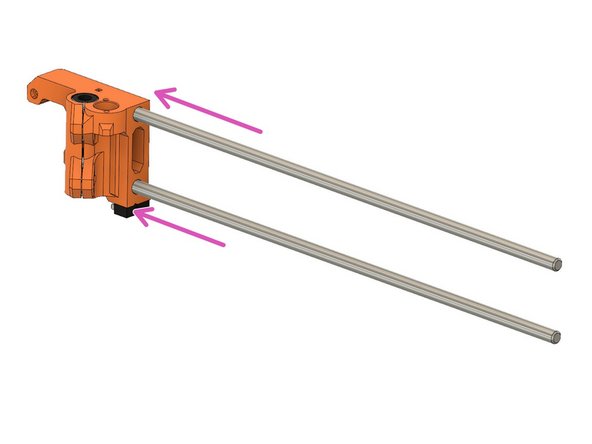

Check the holes for4 the smooth rods in the x_end_motor part and ensure that they are clean and free from obstructions.

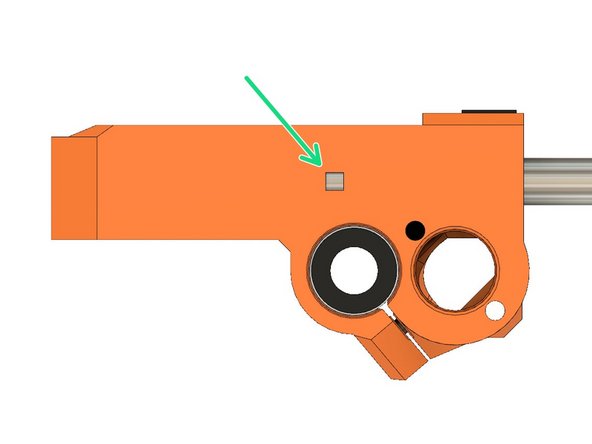

Slide the two 370mm smooth rods in the x_end_motor.

Ensure that the smooth rods are fully inserted. You can see them in the little windows on top and bottom.

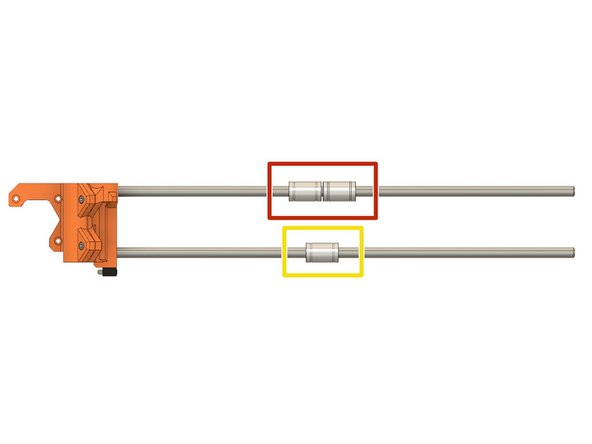

Insert two LM8UU linear bearings on the top smooth rod.

Insert one LM8UU linear bearing on the bottom smooth rod.

Be very careful inserting the LM8UU linear bearings.

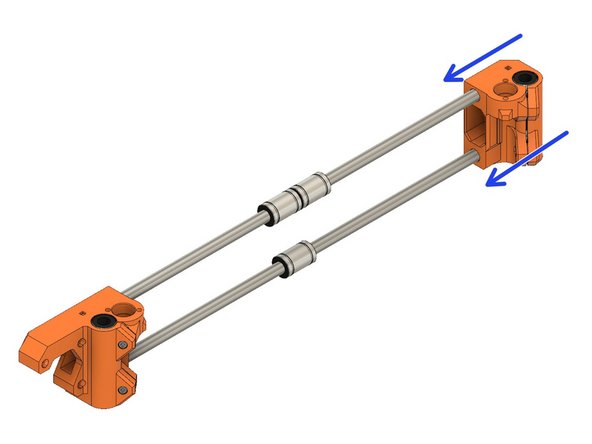

Insert both rods simultaneously into the x_end_idler and provide even pressure to force the rods all the way in.

Using the observation windows, verify that each rod is fully seated.

Take the time to double check observation windows on both x_end_idler and x_end_motor.

The 2GT 16T pulley's gear teeth are not visible on the images.

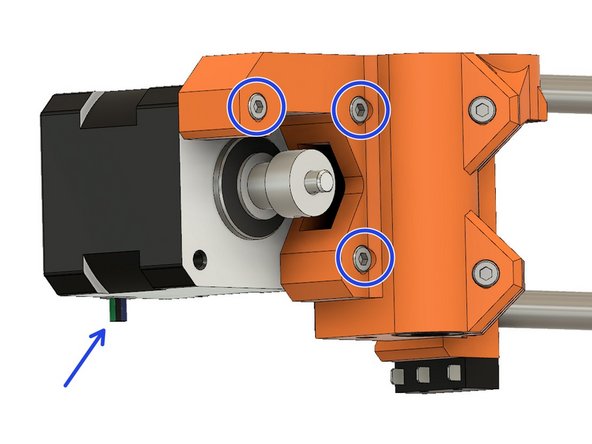

Position the 2GT 16T pulley so that approximately 3.5 to 4 mm of the shaft protrudes. Ensure the pulley is not touching the motor.

Align one of the set screws on the flat on the motor shaft and then tighten, alternately, each set screw until they are both snug.

Using three M3x18 screws, attach the x-axis motor. Note the orientation of the wires.

Double check the pulley position and ensure it does not touch the motor.

Insert the idler in the x_end_idler_idler_mount.

Press the dowel pin through the x_end_idler_tensioner and idler bearings.

Verify that the dowel pin is not protruding from either side.

Verify that the idler spins freely.

Insert two M3 nylock nuts in the top and bottom of x_end_idler_tensioner. Note the orientation of the nylock nuts.

Insert the x_end_idler_tensioner in the x_end_idler.

Secure it with two M3x18 screws. Don't need to tighten the screws, only engage them.

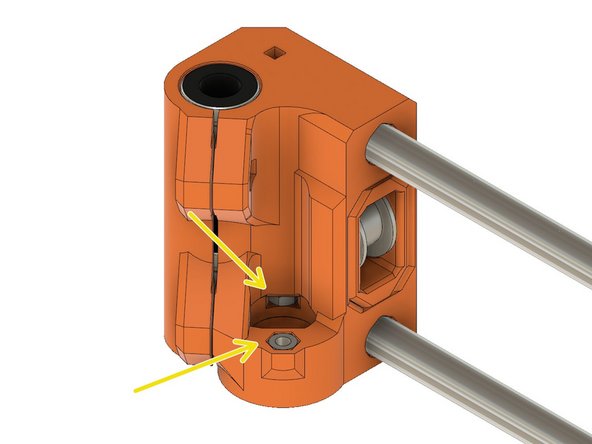

Insert two M3 hex nuts in the dedicated pockets of x_end_idler.

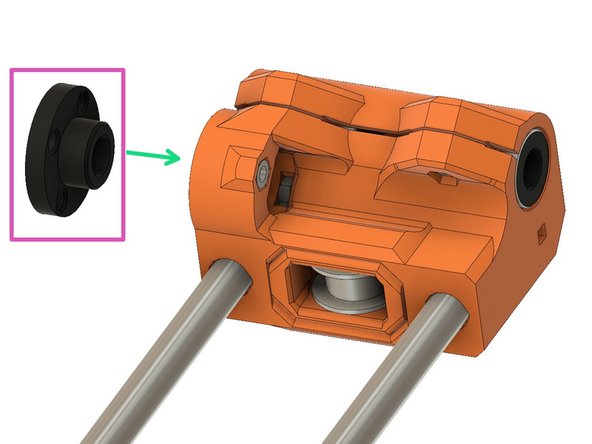

Note the orientation of the trapezoidal nut.

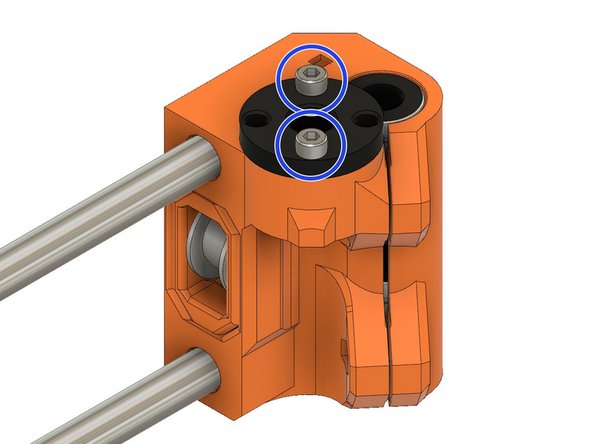

Insert a trapezoidal nut on top of x_end_idler.

Using two M3x18 screws, tighten the trapezoidal nut in place. Do not over-tighten the screws.

Verify that the trapezoidal nut is in the correct orientation.

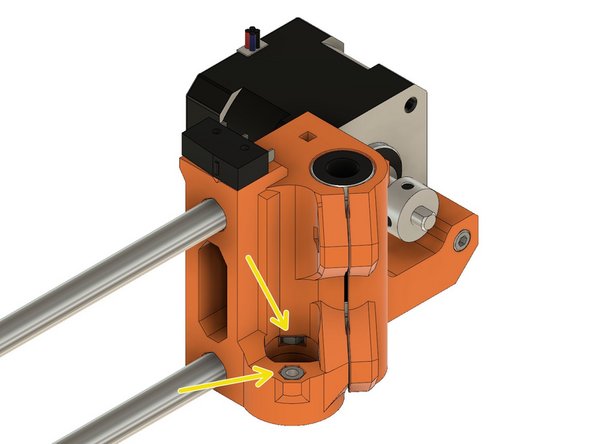

Insert two M3 hex nuts into the dedicated pockets of x_end_motor.

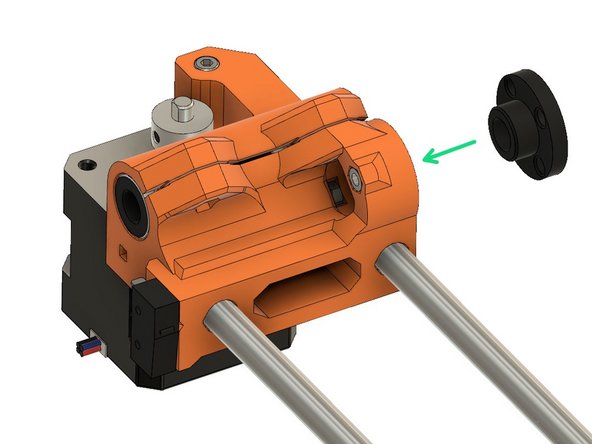

Insert a trapezoidal nut on top of x_end_motor.

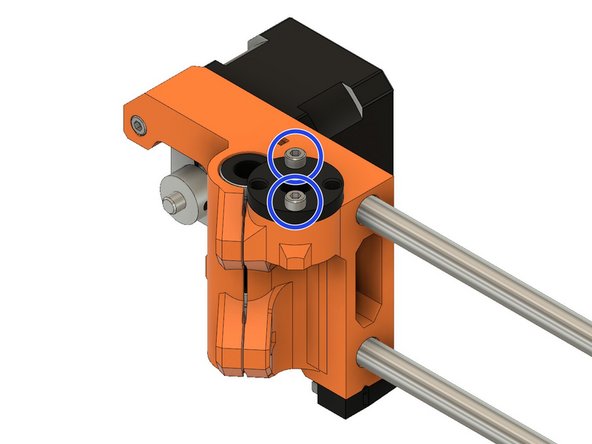

Using two M3x18 screws, tighten the trapezoidal nut in place. Do not over-tighten the screws.

Verify that the trapezoidal nut is in the correct orientation.

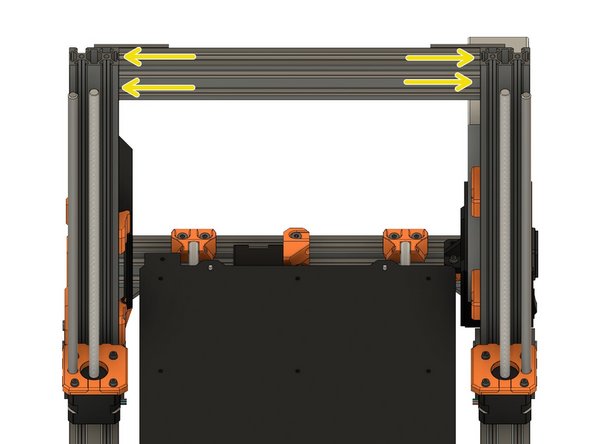

Check that the z_tops and z_end_caps have been removed.

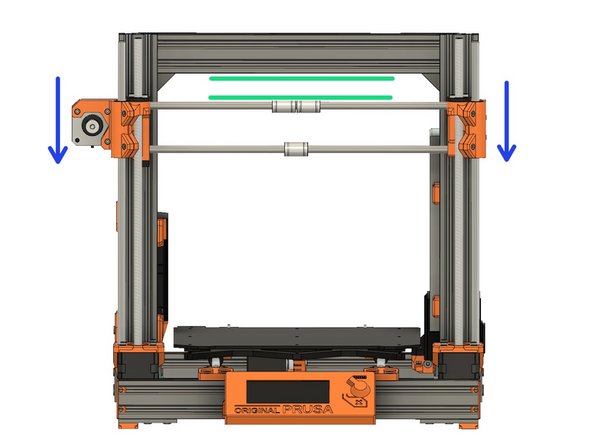

Carefully slide the X axis assembly onto the Z-axis. Rotate both lead screws to engage the X axis in the trapezoidal nuts.

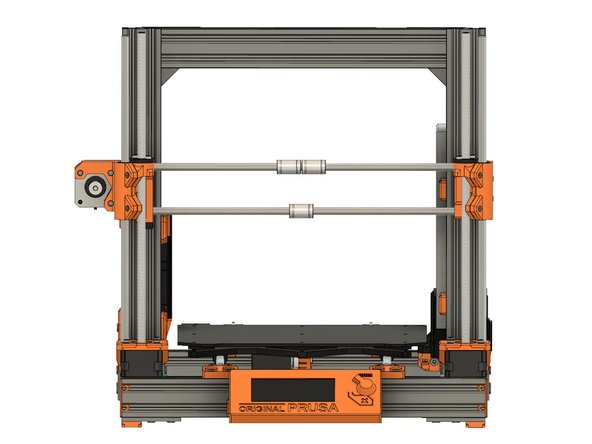

Continue to rotate both lead screws, by hand, to move the X axis assembly down by a few centimetres. If the X rods are not parallel with the top of the Z axis, rotate a lead screw on one side only, until the X axis assembly is parallel to the top of the Z axis.

Continue to move the X axis assembly downwards until you reach the middle of the Z axis. Keep the X axis as level as possible.

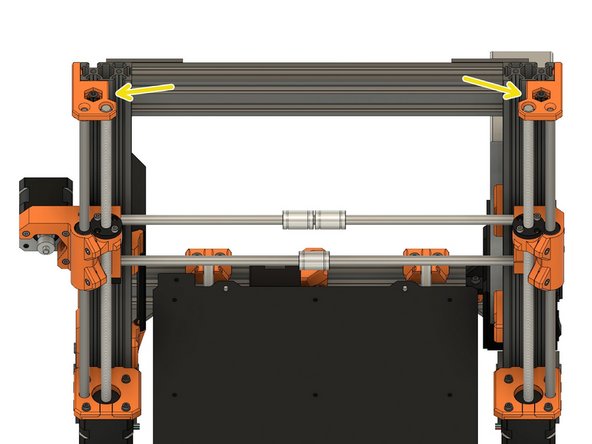

Install the Z axis tops and tighten them.

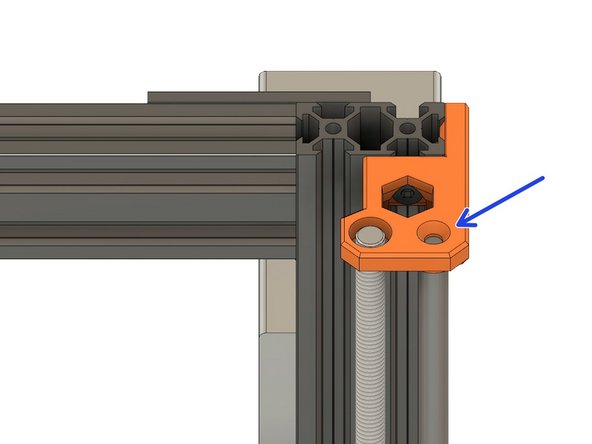

Bear Upgrade frame only: Make sure the z_tops are flush with the Z smooth rods on both sides

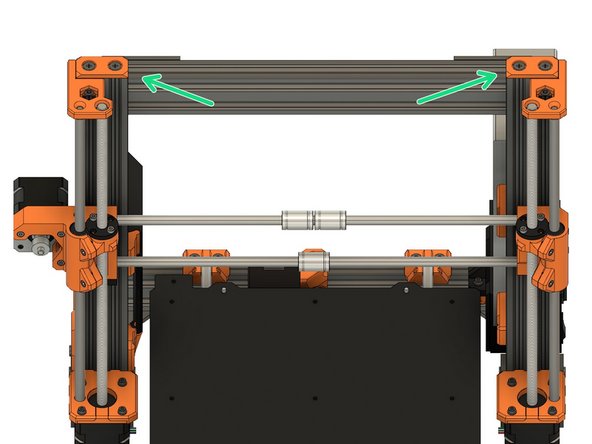

Bear Upgrade frame only: Tighten the z_ends_caps on top of the Z axis with the M5 screws.
