Follow the Bondtech Prusa i3 MK*** Upgrade Kit - Installation guide to assemble the Bondtech extruder body.
-
-
-
Follow steps of Bear extruder assembly guide 1. Preflight check and disassembly
-
-
-

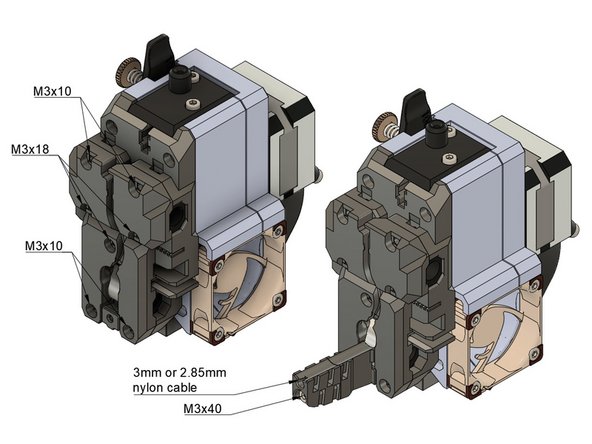

Attach the Bear X carriage to the Bondtech extruder following the images.
-
Your Bear X carriage as well as Bondtech extruder can be a little different than on those images but the positions and global shape is the same.
-
-
-
Assemble the Bondtech extruder on the Bear X axis using the Bear extruder guide 4. Extruder and X axis assembly.
-
-
-
Download the latest firmware from the Bondtech site: https://www.bondtech.se/en/knowledge-bas...
-
-
-
Finalize the assembly with the Bear extruder guide 5. Final adjustments and calibration using the firmware you have downloaded in the previous step.
-
-
-
Congratulations, you have finished to install and calibrate your Bondtech Prusa Upgrade extruder on Bear X axis.
-
Happy printing :)
-
